Tubes & Interfaces / Purchasing guide
A nominal tube diameter does not describe every aspect of fit. If a tube must slide into a housing or engage a sleeve, identify the mating region and agree the relevant dimensional checks. The inspection plan should reflect the assembly requirement rather than assuming that a single measurement at one end resolves the whole interface.
Catalogue reference image. Confirm the quoted configuration against the agreed drawing.
Define the fit region
Mark where the mating component engages and how far it travels. Include any coating, adhesive or inserted component that affects the assembled interface. Describe whether the fit is checked on loose parts or in an assembly fixture. This prevents a disagreement in which each party measures a different region and both report a correct result.
Agree the measurement setup
Ask the supplier to explain the proposed instrument, measurement locations and part support. If shape or alignment requirements matter, identify them separately from the nominal diameter. Do not introduce a geometric tolerance without explaining the functional requirement it is intended to protect.
Keep the mating part under control
A tube cannot be accepted as a complete fit solution if the housing changes without review. Record the mating drawing revision and sample identifier used during approval. For repeat orders, confirm that both sides of the interface are unchanged or reopen the fit review before purchasing.

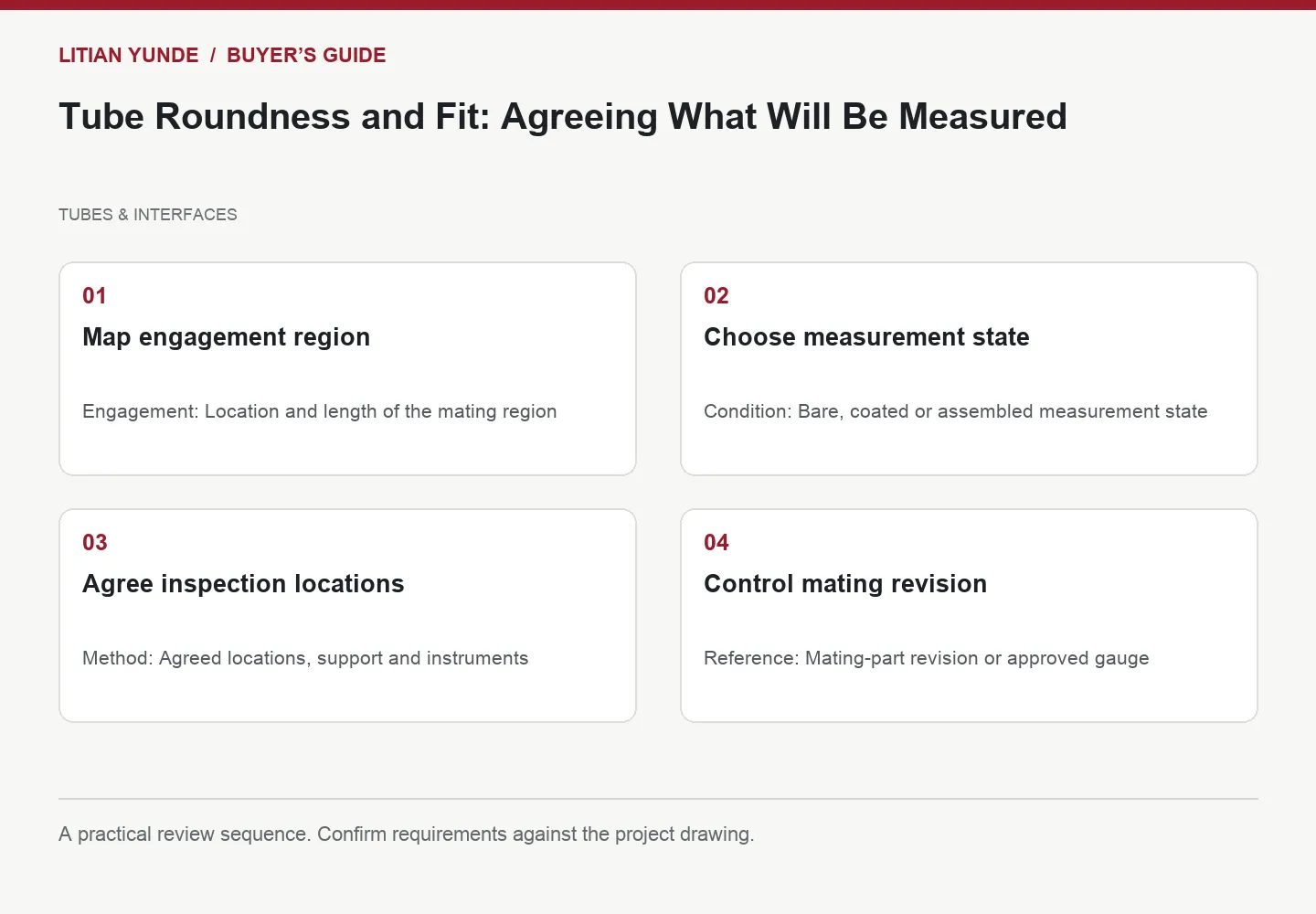

Information to include in your enquiry
| Review item | Information to provide |
|---|---|
| Engagement | Location and length of the mating region |
| Condition | Bare, coated or assembled measurement state |
| Method | Agreed locations, support and instruments |
| Reference | Mating-part revision or approved gauge |
Frequently asked questions
Is a hand-fit demonstration enough?
It can reveal an assembly issue, but repeatable acceptance should identify the reference parts and checking conditions.
Can one diameter reading prove the whole tube fits?
Not necessarily. Choose checks that represent the actual engagement region and the design requirements.
Discuss your carbon fiber component
Send your drawing revision, intended application, quantity and acceptance requirements to Litian Yunde for a project review.
